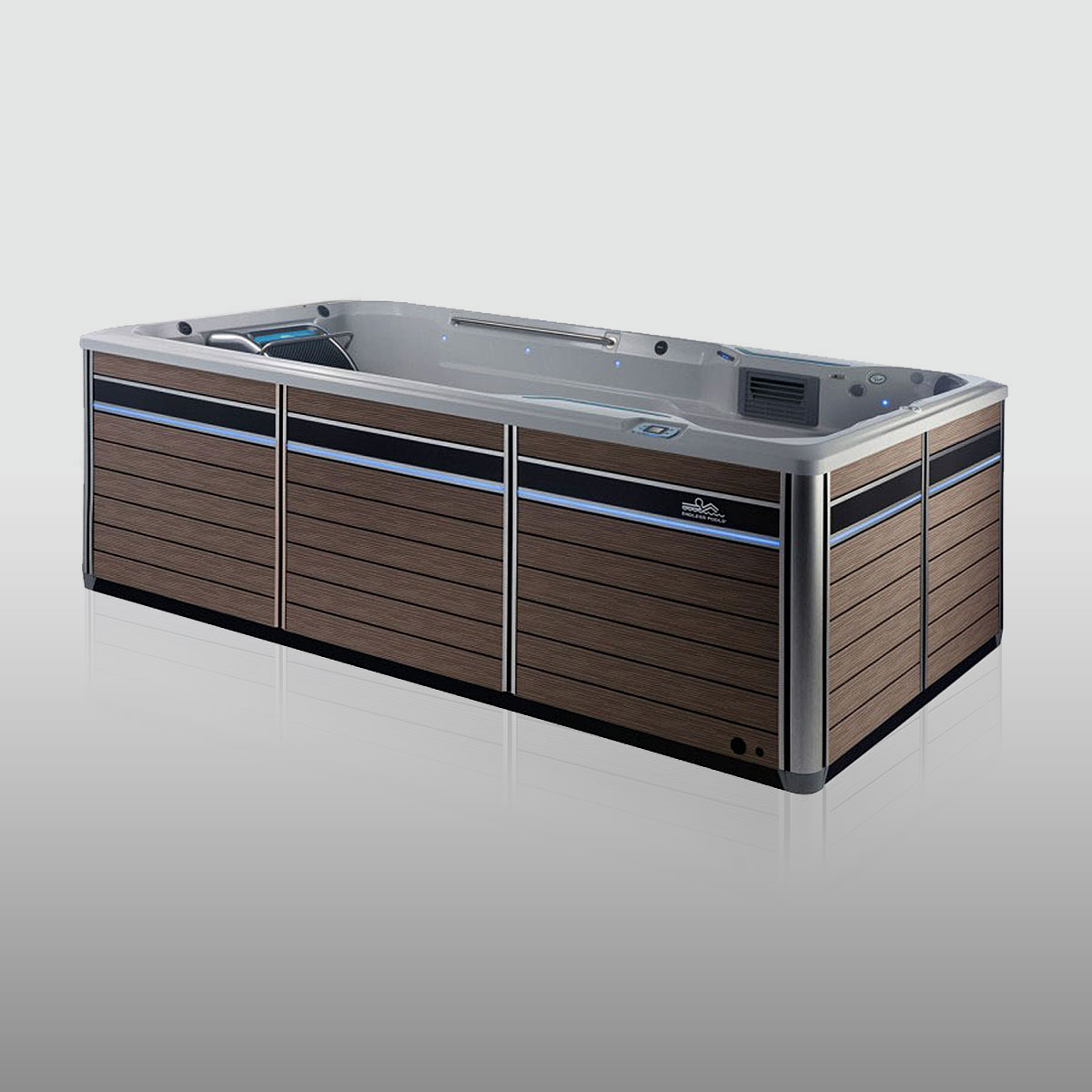

E700 Endless Pools® Fitness Systems
Impeccable design meets spacious wellness.
There is nothing like the feeling you get after a rigorous workout. Your heart pumps, your muscles are stimulated, and your mind feels clear.
This is the beauty of having your Endless Pools® Fitness System just steps away from your backdoor,where you can swim, run, exercise and relax in the privacy and convenience of your backyard.
The E700 blends remarkable design features with the innovative Endless Pools Swim Machine and optional treadmill for a variety of low-impact fitness options. And, with its extended swim and exercise area, the E700 is accommodating to the most versatile workout routines.
|Spec||58″ Swim & Tread||58″ Swim||52″ Swim|
|Dimensions||17′ L X 58″ H X 89″ W||17′ L X 58″ H X 89″ W||17′ L X 52″ H X 89″ W|
|Water Capacity||2,100 Gallons||2,150 Gallons||1,975 Gallons|
|Weight||3,480 Lbs (Dry) / 22,745 Lbs (Filled*)||3,025 Lbs (Dry) / 22,710 Lbs (Filled*)||2,980 Lbs (Dry) / 21,205 Lbs (Filled*)|
|Shell Color Options||Alpine White or Ice Gray||Alpine White or Ice Gray||Alpine White or Ice Gray|
|Cabinet Color Options||Dark Mocha or Gray Oak||Dark Mocha or Gray Oak||Dark Mocha or Gray Oak|
|Swim Technology||Endless Pools® Swim Machine||Endless Pools® Swim Machine||Endless Pools® Swim Machine|
|Swim Power Unit||5 HP Hydraulic Power Unit||5 HP Hydraulic Power Unit||5 HP Hydraulic Power Unit|
|Treadmill Power Unit||5 HP Hydraulic Power Unit||Not Applicable||Not Applicable|
|Hyrdomassage Jets – 27||1 Large Jet
2 Rotary Jets
2 Directional Jets
22 Mini Jets
|1 Large Jet
2 Rotary Jets
2 Directional Jets
22 Mini Jets
|1 Large Jet
2 Rotary Jets
2 Directional Jets
22 Mini Jets
|Hyrdomassage Jet Pump||2.5 HP Continuous Duty; 5.2 HP Breakdown Torque – 1 Speed Pump||2.5 HP Continuous Duty; 5.2 HP Breakdown Torque – 1 Speed Pump||2.5 HP Continuous Duty; 5.2 HP Breakdown Torque – 1 Speed Pump|
|Control System||LCD Control Panel; 230v/60amp, 60 Hz, includes G.F.C.I. protected sub-panel||LCD Control Panel; 230v/60amp, 60 Hz, includes G.F.C.I. protected sub-panel||LCD Control Panel; 230v/60amp, 60 Hz, includes G.F.C.I. protected sub-panel|
|Water Feature||2 Illuminated Waterfalls||2 Illuminated Waterfalls||2 Illuminated Waterfalls|
|Water Management System||UVC Ozone||UVC Ozone||UVC Ozone|
|Circulation Pump||Hi Flow Circulation Pump||High-Flow Circulation Pump||High-Flow Circulation Pump|
|Effective Filtration Area||200 Square Feet (4 x 50 Square Feet)||200 Square Feet (4 x 50 Square Feet)||200 Square Feet (4 x 50 Square Feet)|
|Lighting System||20 Multi-Color LED Points of Light & Main Light||20 Multi-Color LED Points of Light & Main Light||20 Multi-Color LED Points of Light & Main Light|
|Substructure||14-Gauge Galvanized Steel Frame||14-Gauge Galvanized Steel Frame||14-Gauge Galvanized Steel Frame|
|Base Pan||Thermoformed ABS Base Pan||Thermoformed ABS Base Pan||Thermoformed ABS Base Pan|
|Energy Efficiency||Certified to the APSP 14 National Standard and the California Energy Commission (CEC) in accordance with California Law||Certified to the APSP 14 National Standard and the California Energy Commission (CEC) in accordance with California Law||Certified to the APSP 14 National Standard and the California Energy Commission (CEC) in accordance with California Law|
|Stainless Steel Grab Rails||3 Satin Stainless Steel Rails||3 Satin Stainless Steel Rails||3 Satin Stainless Steel Rails|
|Music Option||8 Speakers + Subwoofer, Bluetooth® Enabled||8 Speakers + Subwoofer, Bluetooth® Enabled||8 Speakers + Subwoofer, Bluetooth® Enabled|
|Exercise Equipment Options||Swim Tether and Rowing Kit||Swim Tether and Rowing Kit||Swim Tether and Rowing Kit|
|Vinyl Cover & Lifter Options||Endless Pools® Bi-Fold Covers & Lifters or VacuSeal® Cover System||Endless Pools® Bi-Fold Covers & Lifters or VacuSeal® Cover System||Endless Pools® Bi-Fold Covers & Lifters or VacuSeal® Cover System|
|Additional Options||Endless Pools® Pace Display, Floor Mirror, Gecko® In.Touch Wi-Fi & Mobile App||Endless Pools® Pace Display, Floor Mirror, Gecko® In.Touch Wi-Fi & Mobile App||Endless Pools® Pace Display, Floor Mirror, Gecko® In.Touch Wi-Fi & Mobile App|
|*Includes water and 10 adults weighing 175 lbs. each|

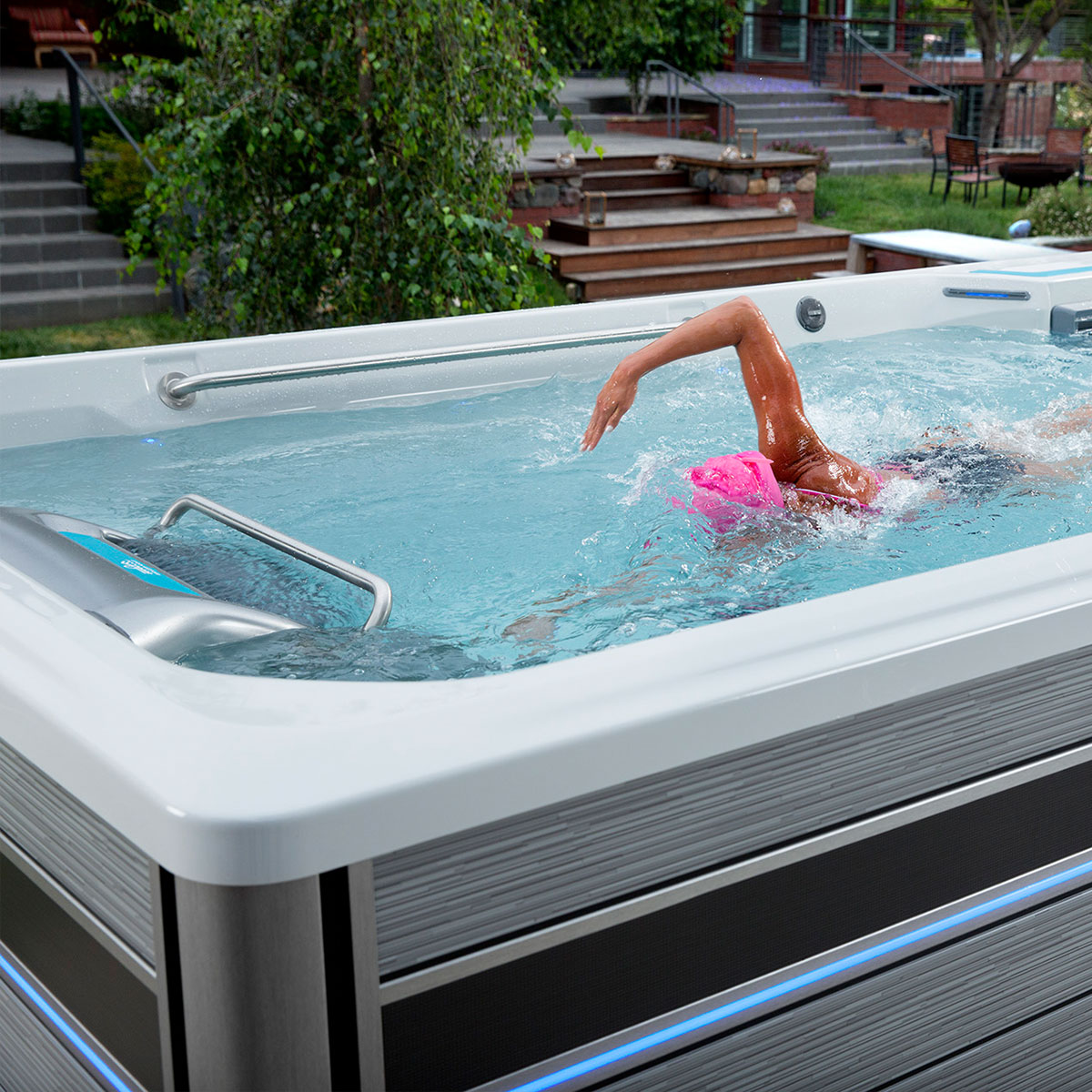

The Original Endless Pools® Swim Machine

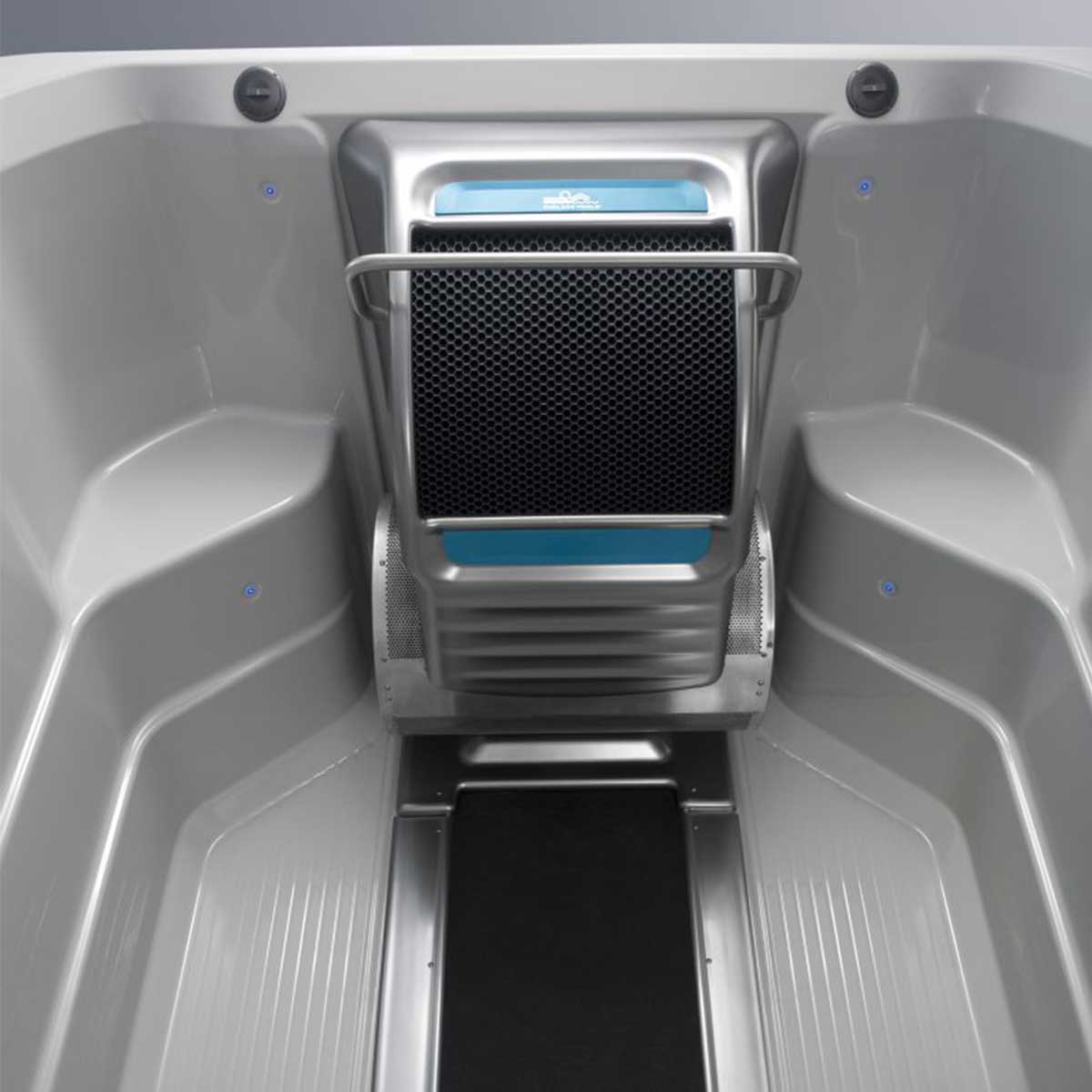

A custom-made, hydraulically powered propulsion system creates a laminar current of up to 5,000 gallons per minute (GPM) that is wider than your body and deeper than your stroke. Multiple conditioning grills smooth and redirect the water, resulting in a swim current that is free of turbulence. Swim Machine flow speed ranges from 5:00 to 1:08 minutes per 100 yards and can be easily adjusted for precise pace selection.

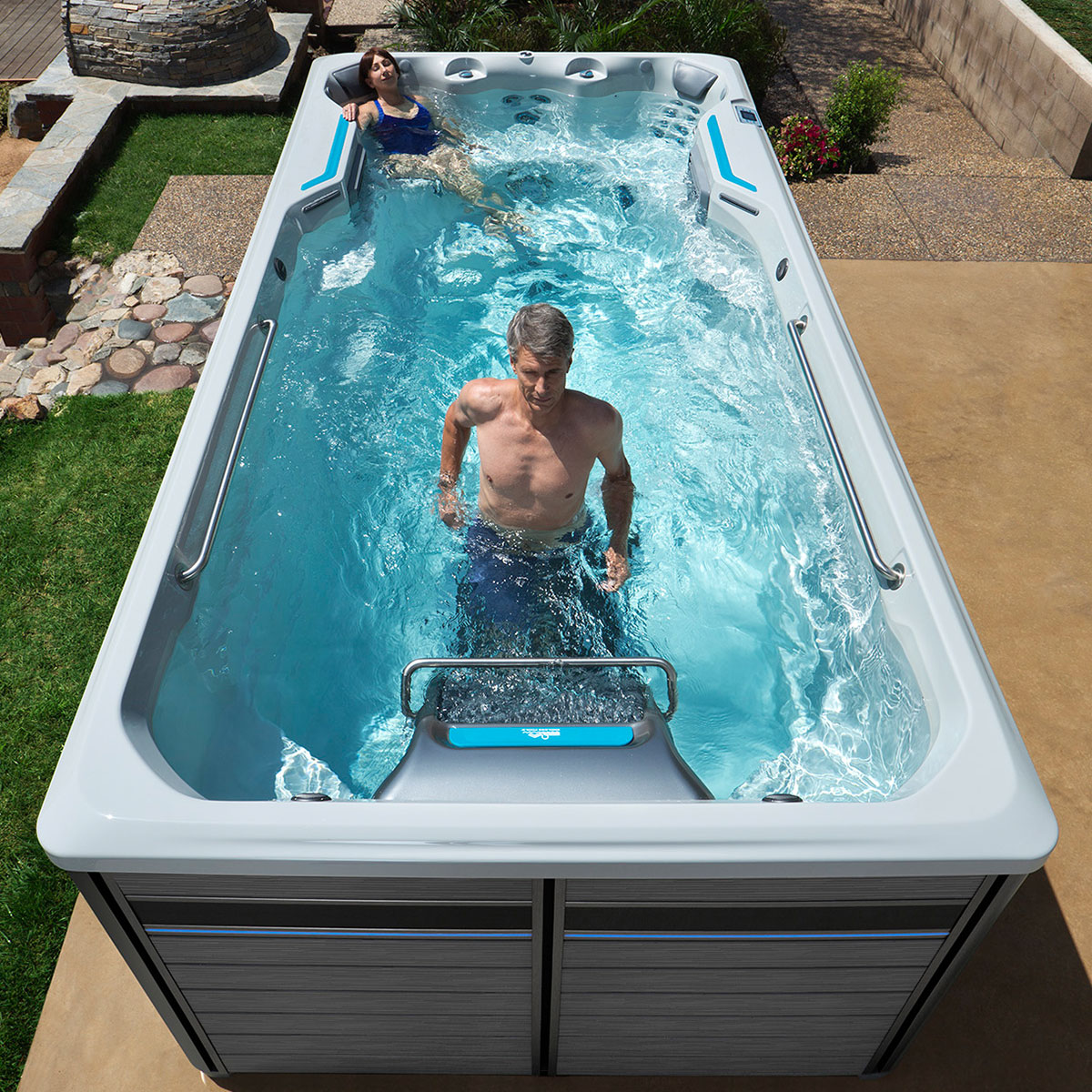

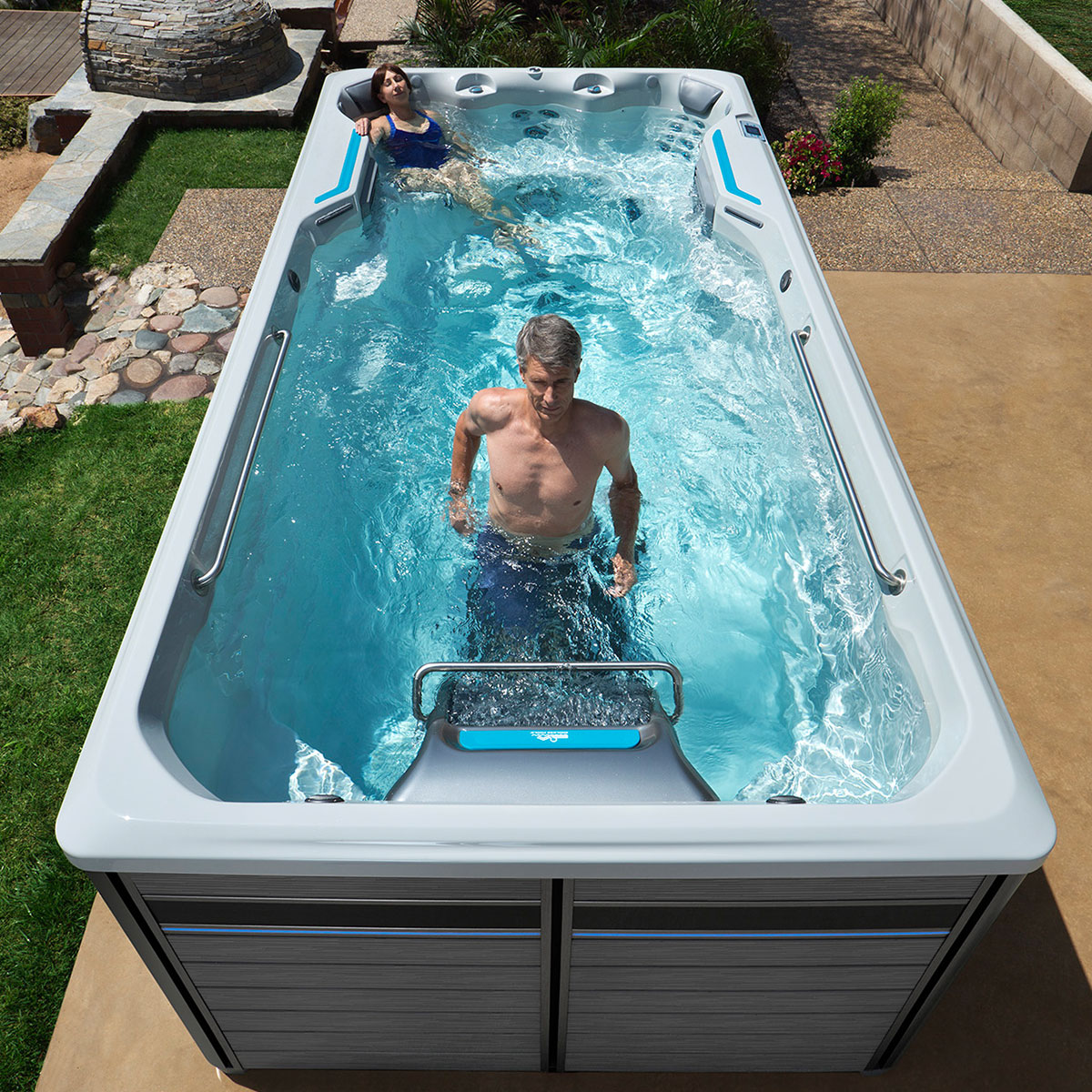

The optional Endless Pools hydraulically powered underwater treadmill offers low-impact running and walking options for all of the cardiovascular benefits of exertion without the negative side effects often felt with land-based exercise. Treadmill speeds vary from 0 – 5.5. MPH and can be combined with the swim current for increased resistance against core, leg, and upper body muscle groups.

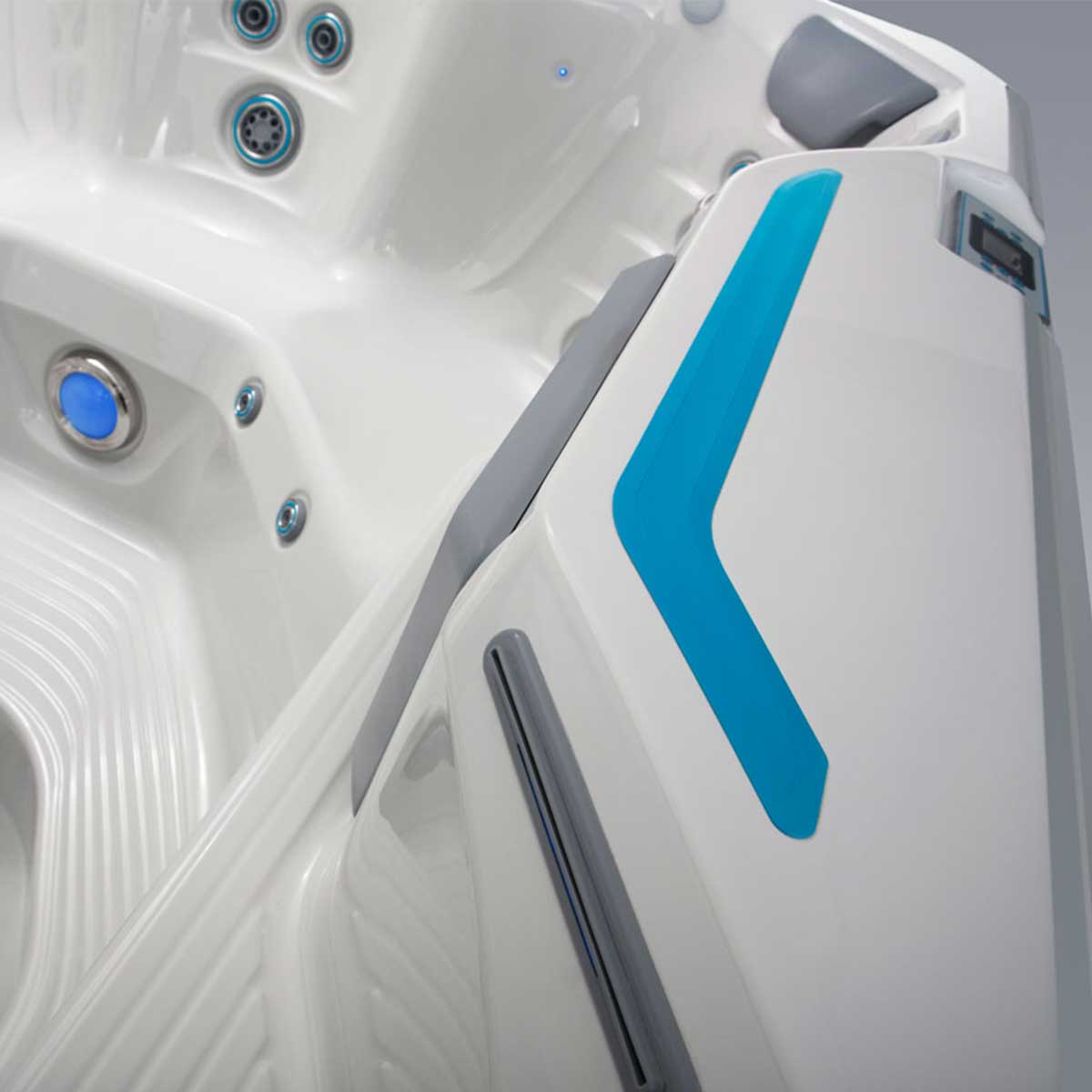

Spa Seating with Hydromassage Jets
Following your workout, there is nothing like a “cool-down” in the comfort of spa seating here hydromassage jets soothe your muscles. Perfectly positioned in two captain’s chairs with pillows, plus a third middle seat, four jet types are combined in three configurations to deliver an ideal post-workout relaxation experience.
Mini Jet – A small and focused stream of water targets specific areas.
Directional Jet – Similar to the mini, the directional jet is focused but with a larger stream of water.
Rotary Jet – Same level of water pressure as the directional jet, but rotates to create a circular massage pattern to cover a larger area.
Cluster Jet – A unique soft tissue massage targets the lower back.
The stunning lighting of Endless Pools Fitness Systems delivers maximum design impact. The blue LED Perimeter Illumination Bar provides visual appeal at night, while a 5” main interior light and multi-color LED points of light provide ample brilliance and beauty. The water feature is also backlit for added elegance.
Remote Control for Swim Machine & Underwater Treadmill
The swim machine and underwater treadmill are each managed by individual remote controls that allow you to increase or decrease speed on the fly. The swim machine flow ranges from 5:00 to 1:08 minutes per 100 yards, and can be easily adjusted for precise pace selection. The treadmill has a speed range of 0 to 5.5 MPH.
Hydraulic Power Unit
The Hydraulic Power Unit (HPU) is the heart of the Endless Pools Fitness Systems. It pumps high-grade biodegradable vegetable oil to the underwater motor for both the swim machine and the treadmill. Fitness Systems with both a treadmill and swim machine contain two HPUs which are driven by an incredibly efficient 5HP motor. This design allows for maximum power, while remaining energy efficient.
14-Gauge Steel Frame & ABS Base Pan
All Endless Pools Fitness Systems are built on an extremely durable, 14-gauge galvanized steel frame and ABS base pan. While many see this as an area to cut costs, Endless Pools went a cut above the rest by making this a standard feature on all products. The structural elements of the steel frame and ABS base pan provide the ultimate strength to deliver confidence in ownership for years to come.
Water Management System
Endless Pools Fitness Systems feature a dual water purification system that combines Ultraviolet C (UVC) with eco-friendly CD Ozone, commonly known as Advanced Oxidation Process (AOP), to neutralize contaminants. The continuous water rotation from the circulation pump, coupled with 200 ft. of filtration, ensures ease of maintenance and water that is always exercise-ready.
Keeping your energy bill low is important. The Tri-Thermic™ Barrier System, a standard feature on all Fitness and Exercise Systems, provides three layers of insulation to conserve heat, enhance the energy efficiency, and lower operating costs.
The system’s three layers include a three-quarter inch, two-pound density EPS (Expanded Polystrene) foam and reflective film attached to the inside of the cabinet, combined with two-inch think heat blanket made of high-quality recycled textile fibers and foil film, attached to the inside of the steel frame. Together these materials provide maximum thermal performance.
The Tri-Thermic Barrier System achieves certification to current California Energy Commission (CEC) and APSP 14 National Standards and already meets the upcoming 2018 CEC standards.
Control & Auxiliary Panels

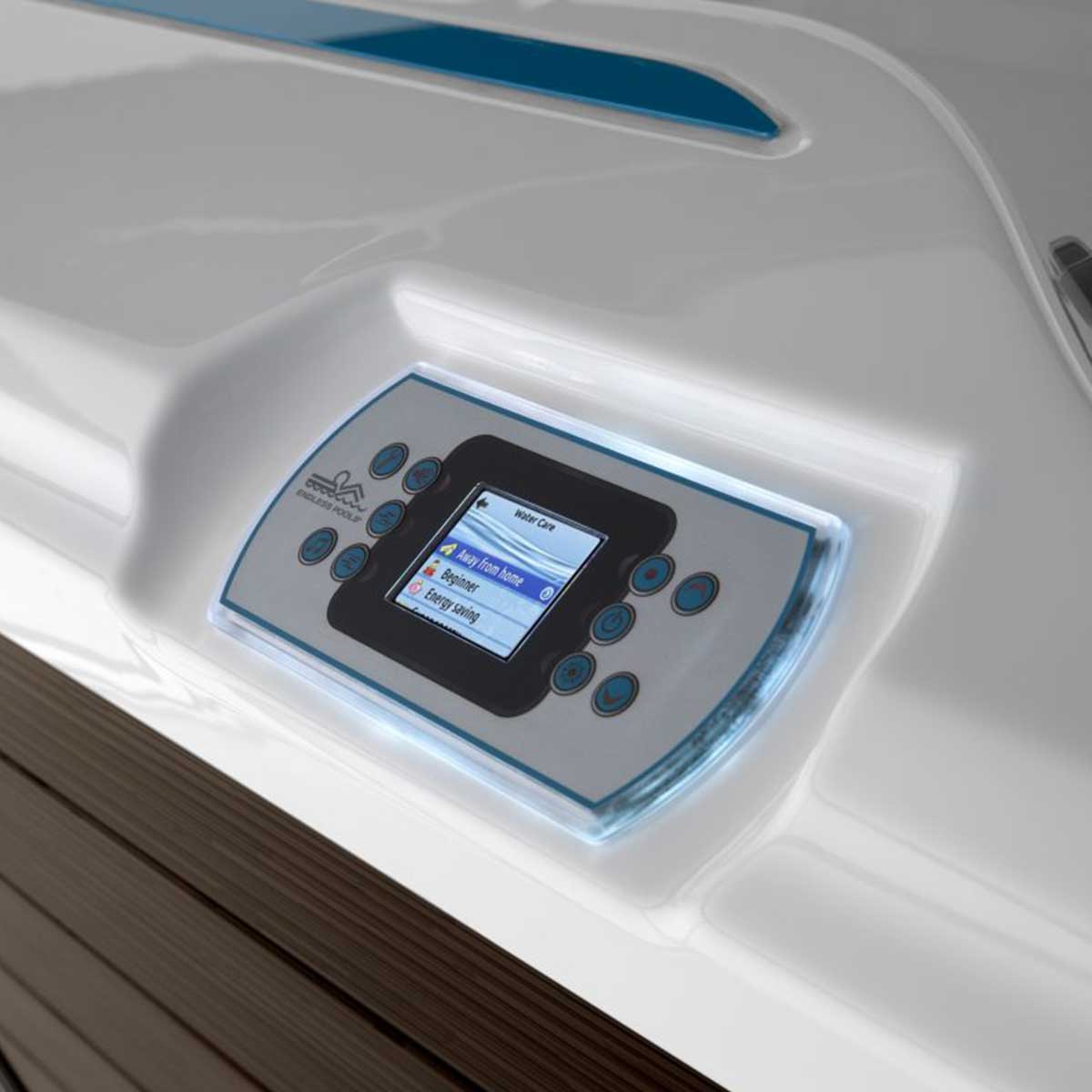

Endless Pools Fitness Systems feature an LCD control panel that makes it easy to navigate component controls. Functions include on/off, water temperature and water care management, as well as control of the interior lighting, and hydromassage jets.
Additionally, the fitness systems’ auxiliary control panel is located on the opposite side from the main panel for added convenience when controlling lighting and hydromassage jets.
Install the optional plug-and-play Gecko® In.Touch Wifi and Mobile App and you’ll gain full control of the system’s temperature, lights and jets from any wifi-enabled tablet or mobile device, anywhere, anytime.
Anchors and Handrails for Aquatic Fitness Accessories
Every fitness and exercise system is equipped with built-in anchors to attach fitness accessories including an optional swim tether, row bar set and resistance bands. The convenient and sturdy handrails are also great for support or for attaching resistance bands.
Fitness System Series
Rowing is an exceptional cardiovascular exercise that keeps the heart rate elevated and strengthens core muscles. Attach resistance bands to the sturdy handrails for added workout options.

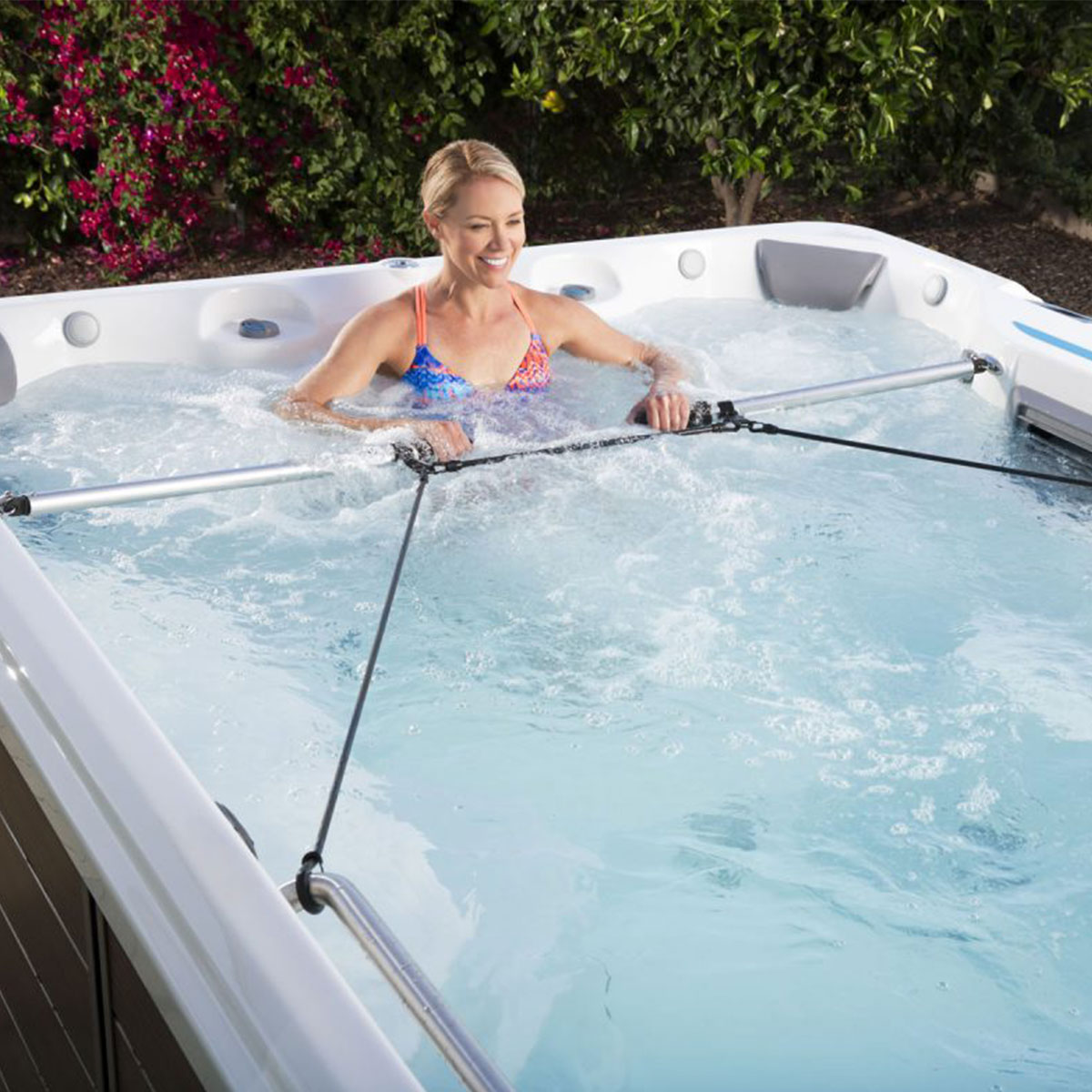

Set up the performance of any Fitness or Exercise System with the optional rowing and resistance gear. Attach the optional row bars to the built-in anchors and/or handrails to experience a low-impact, full body workout.

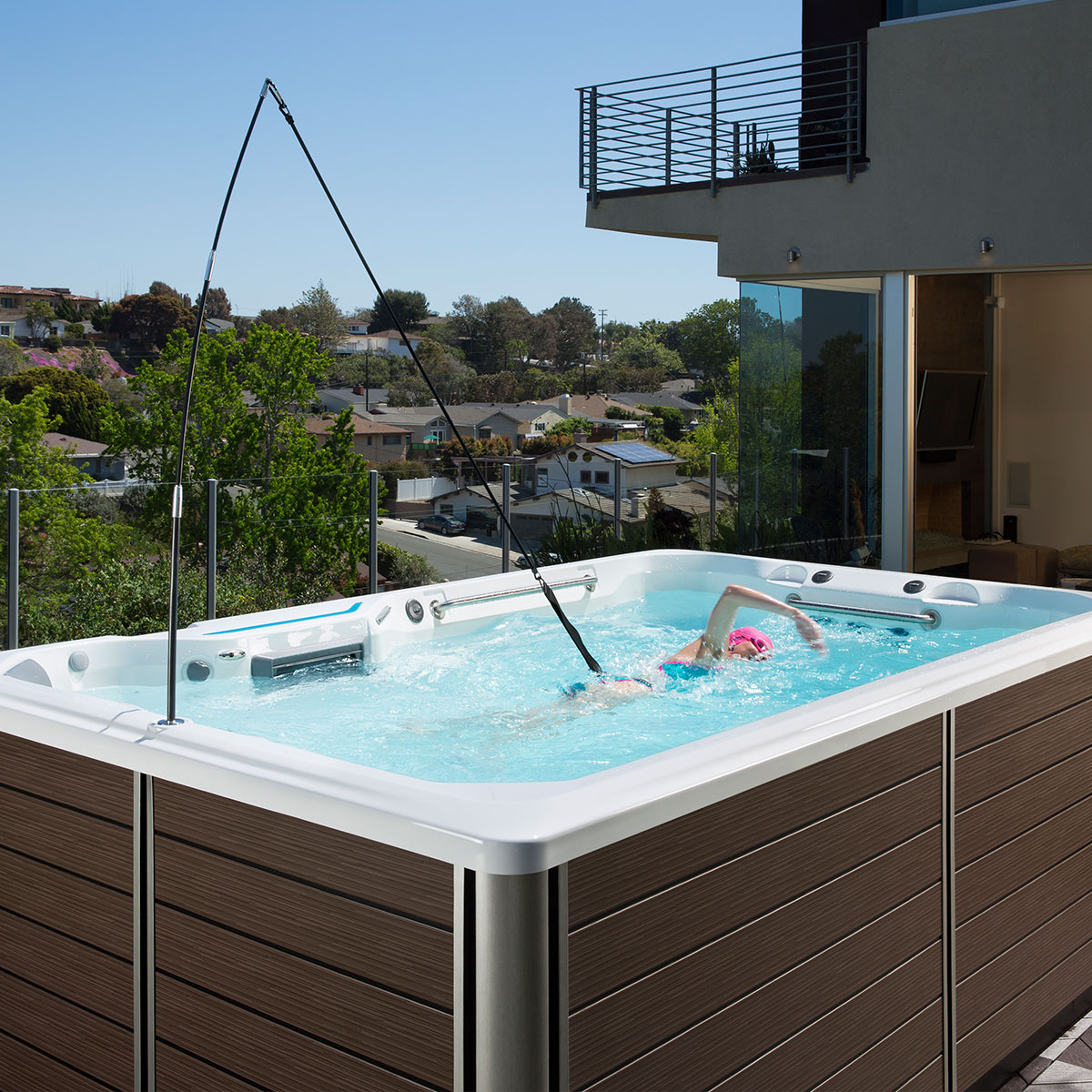

All models come equipped with an anchor for attaching our optional Swim Tether. For beginning swimmers or for anyone looking to improve his or her swimming form, it provides added stability and assistance in maintaining your body position in the current.

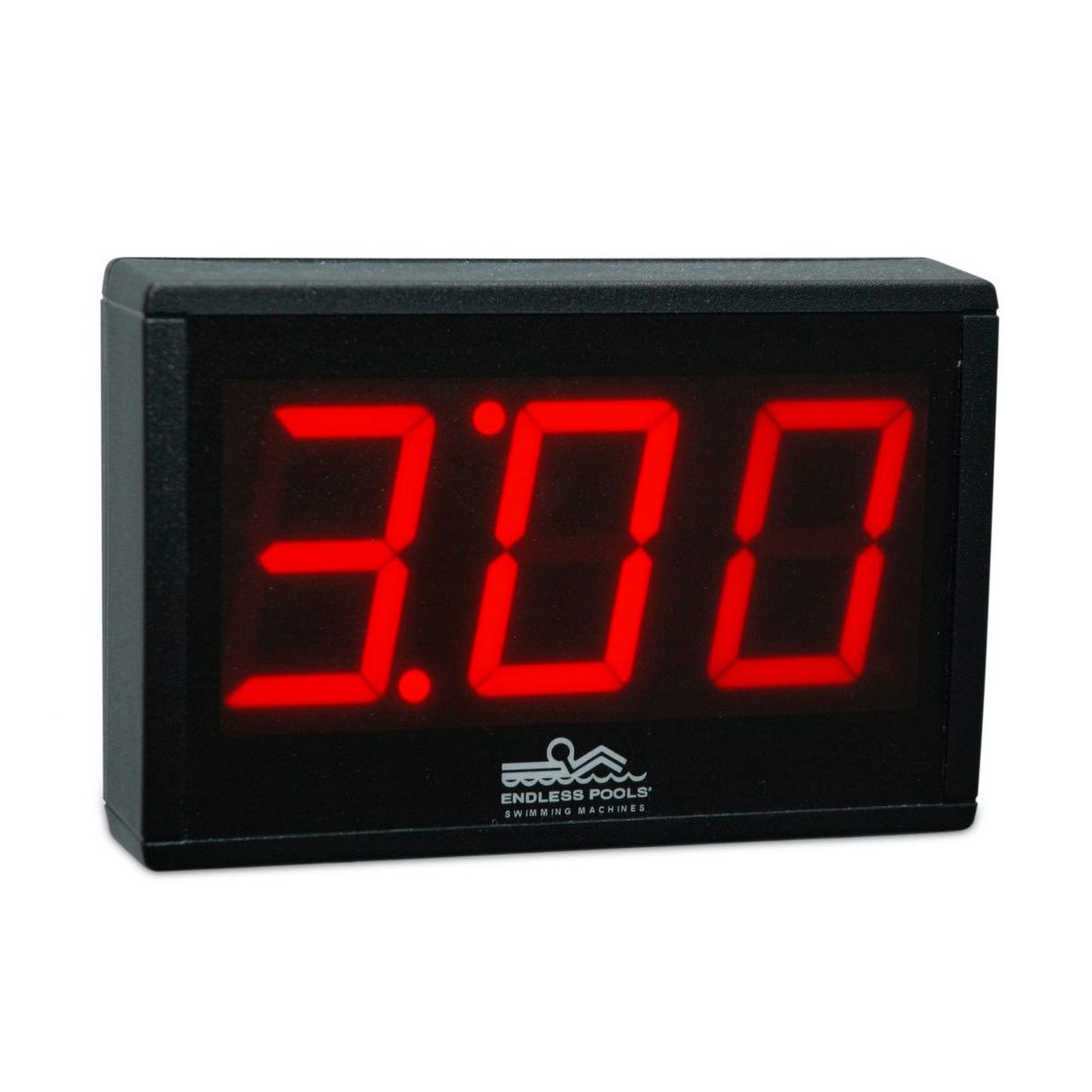

The optional pace display is a necessity for any swim machine or treadmill user who wants to measure performance. It allows for easy reading of the swim current pace and/or treadmill speed, and can be toggled from meters to yards or viewed as a percentage of the top speed. With individual pace displays for swim machine and treadmill, Fitness System owners can use both simultaneously for a more effective workout.

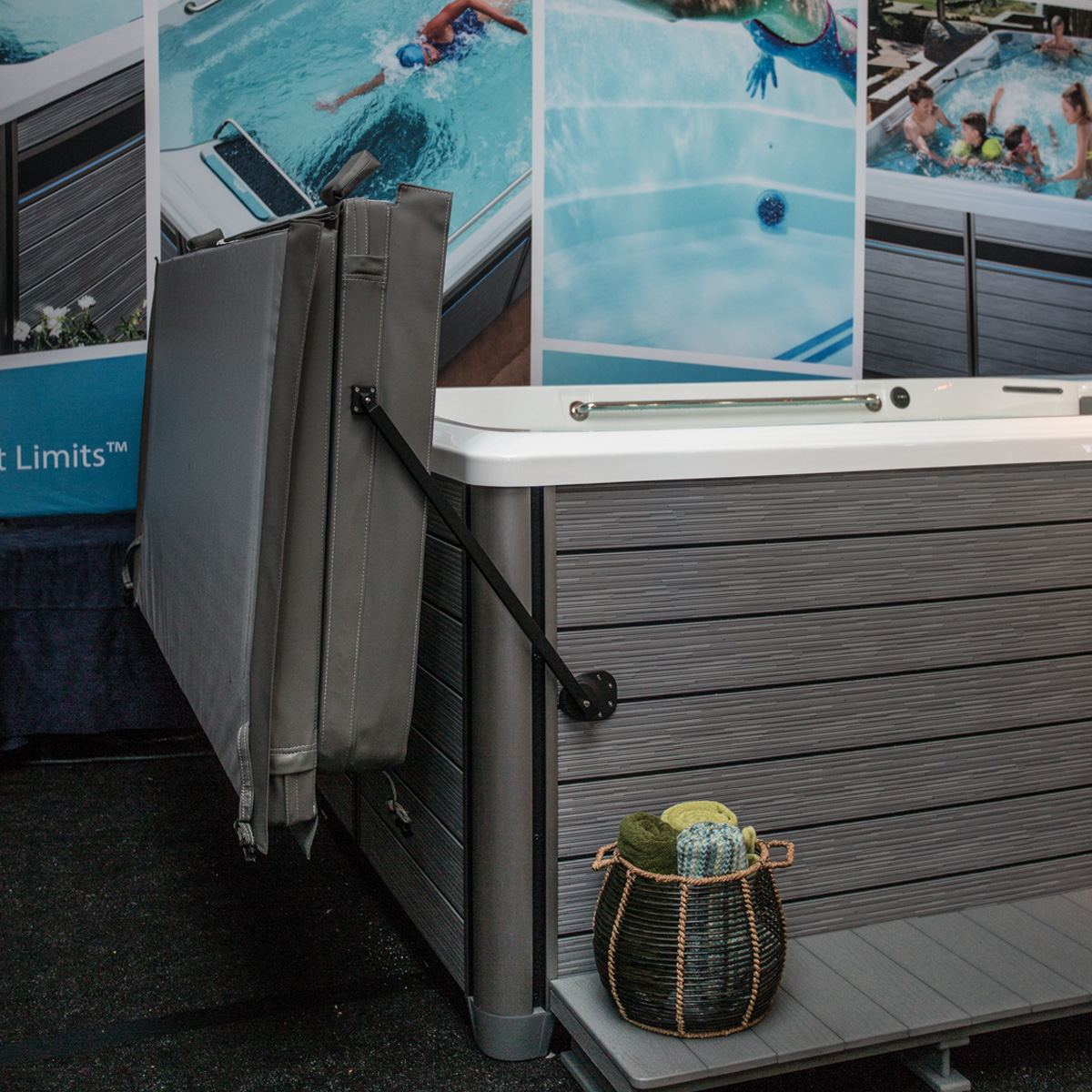

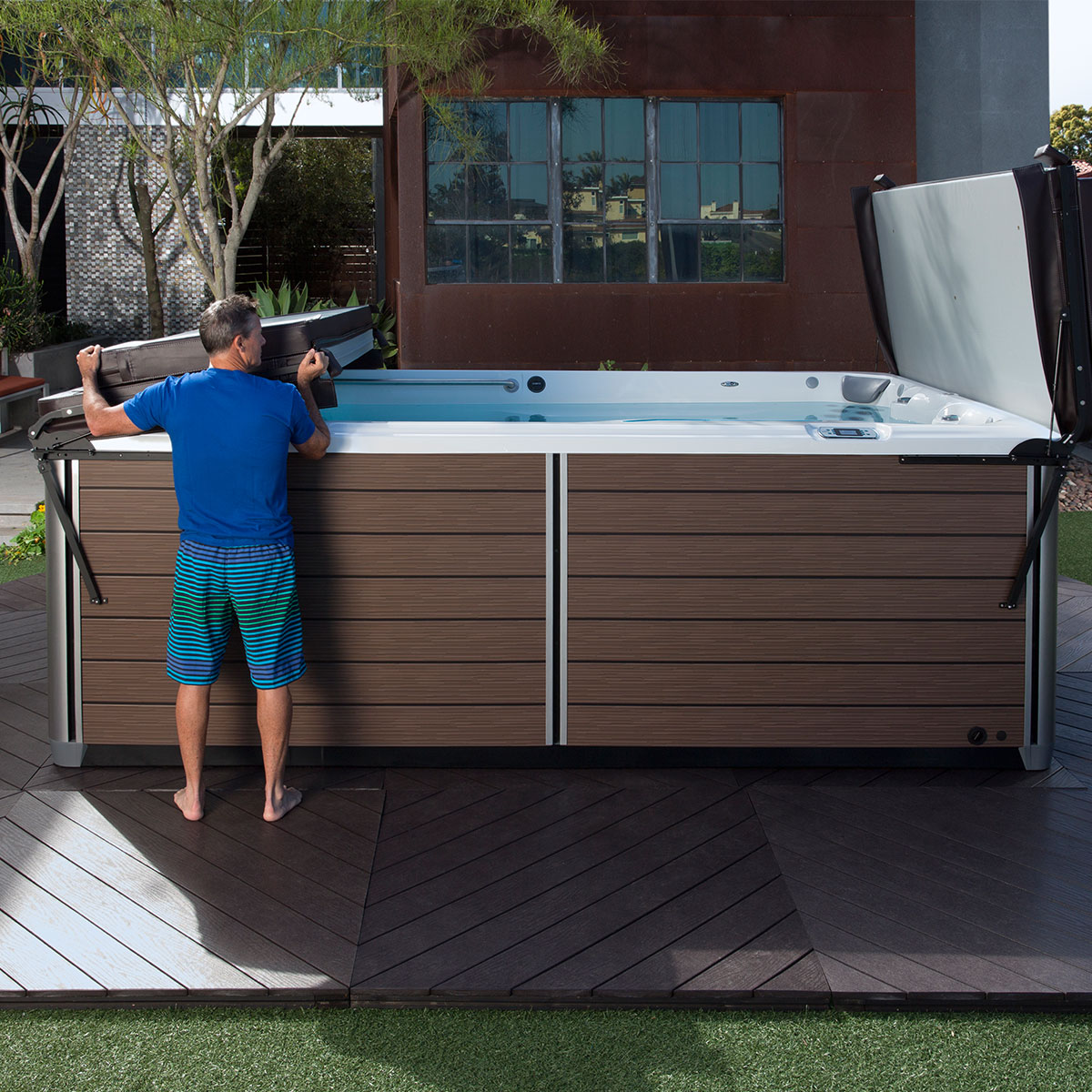

A real money-saver, the Watkins bi-fold cover helps maintain heat and reduce evaporation. It can be used on its own or with the Watkins Lifter System. The Watkins Lifter System lets you install the cover vertically, which is also a space saver.

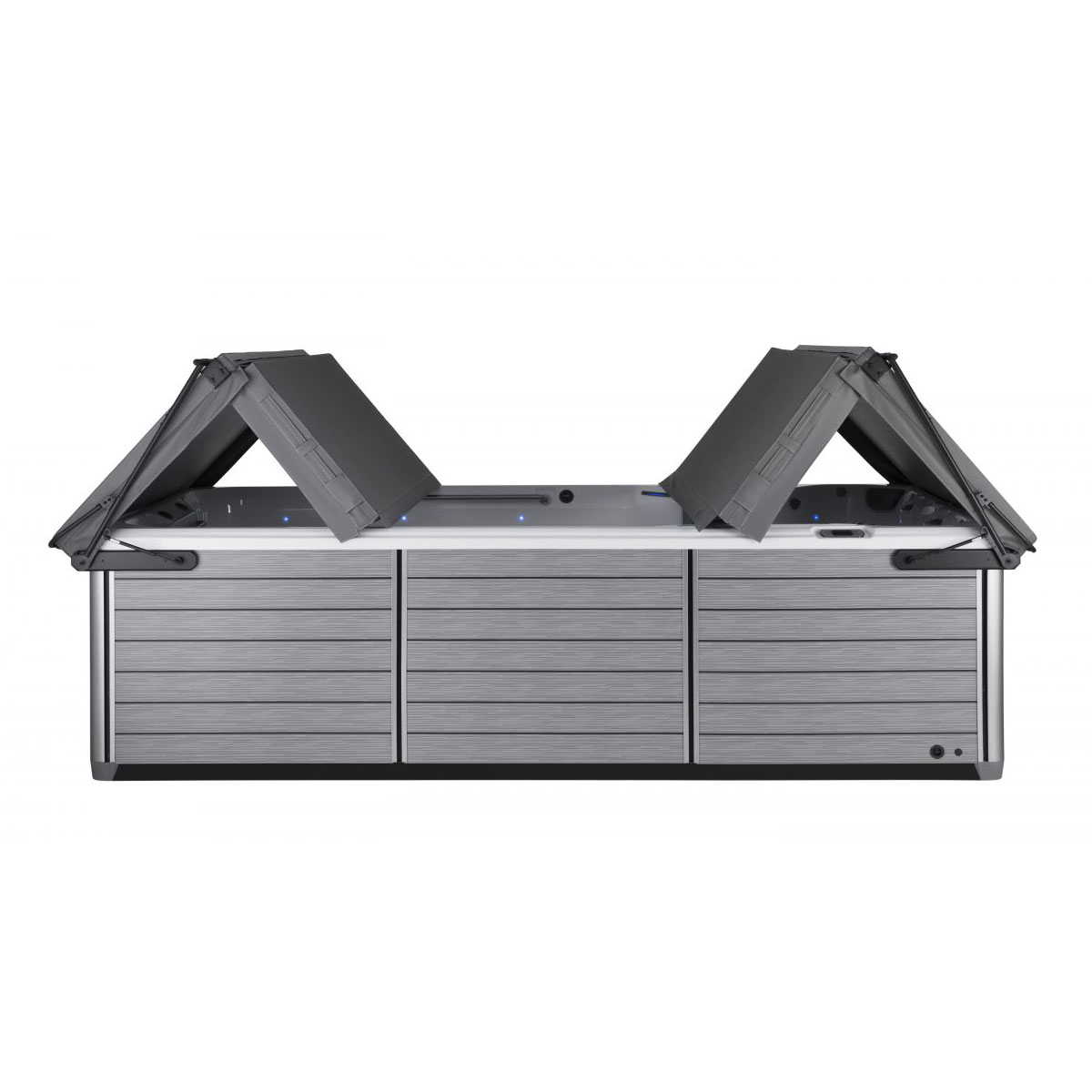

The VacuSeal Lifting System’s unique design ensures a tight seal between covers, which prevents heat loss and evaporation and optimizes efficiencies. It uses a patented “Reverse Pneumatic Technology” which applies downward pressure on the cover to vacuum seal the two covers together, eliminating the center gap, commonly found with traditional covers. Also, this technology lends itself to easier operation of the cover system especially by a single user.

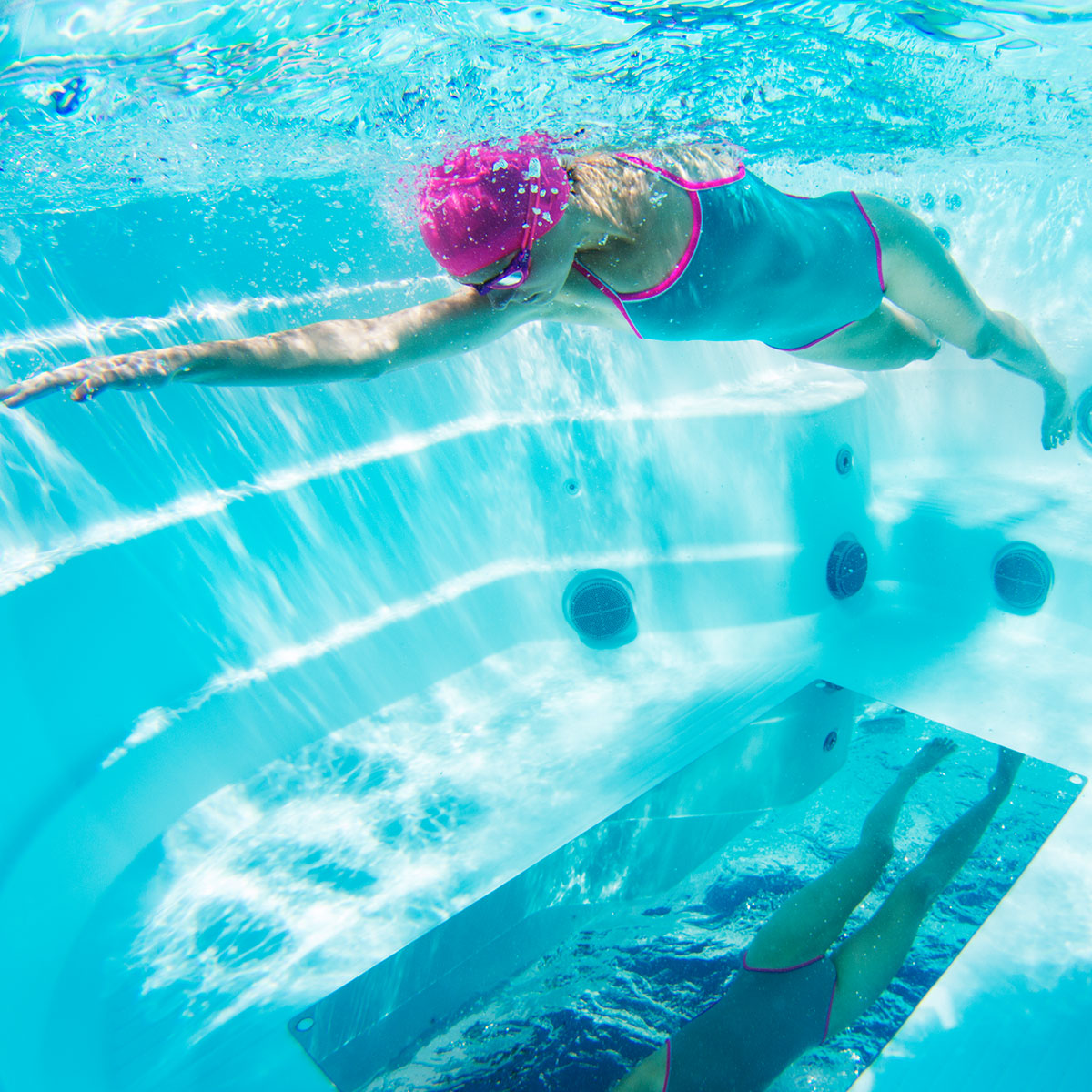

See yourself swim in place and refine your form for improved performance with the optional 24” x 51” stainless steel mirror. Placed on the floor of any Fitness or Exercise System, its weight distribution ensures that the mirror stays securely in place.

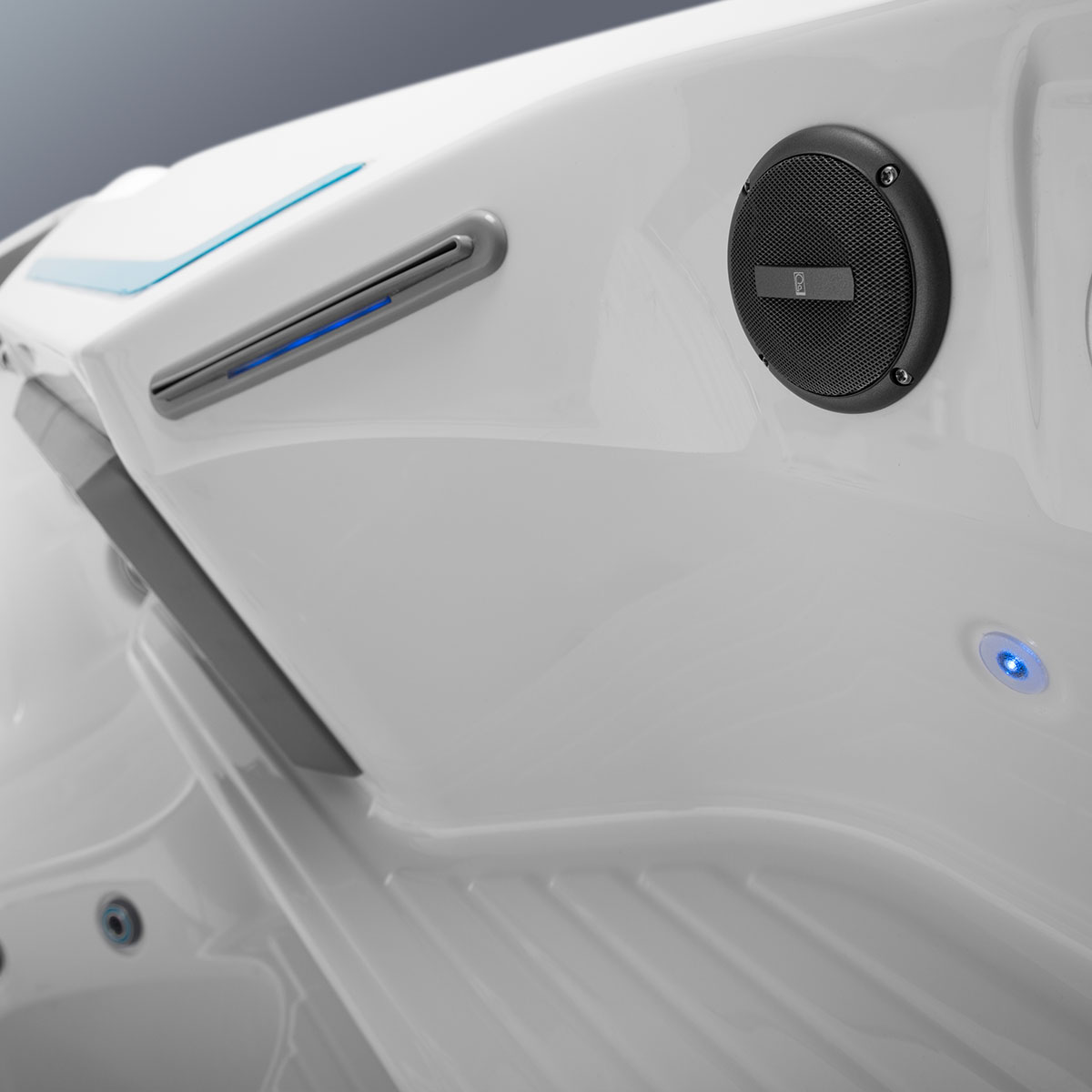

For exercise or backyard enjoyment, nothing sets the mood like our optional, integrated 8-speaker system and subwoofer. It’s easy to set up: simply pair any Bluetooth-enabled device to the system through the control panel to listen to your favorite music anytime.
Ask your Endless Pools® retailer about installation of the optional plug-and-play Wifi and Mobile App. With this added feature, you’ll gain full control of the system’s temperature, lights and jets from any Wifi-enabled tablet or mobile device.

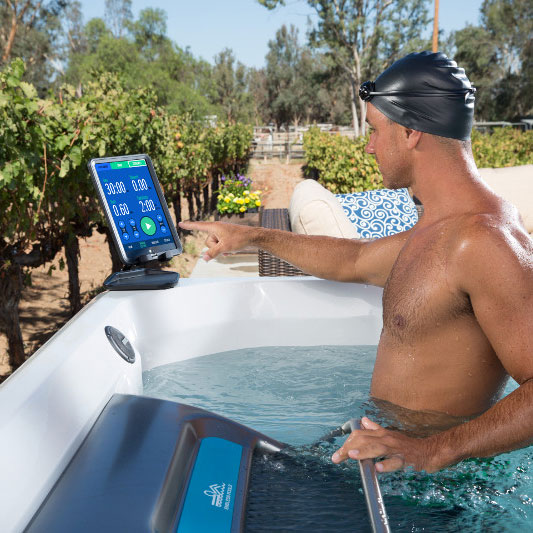

Put full workout functionality at your fingertips! With the Fit@Home App you can adjust the speed controls, monitor workout pace, duration and time, and set up workout programs specific to your goals from your smartphone or tablet.
Ideal for warm climate areas and for use during summer months, when cooler water temperatures are preferred, CoolZone works with the Fitness System heater to efficiently cool or heat the water.
